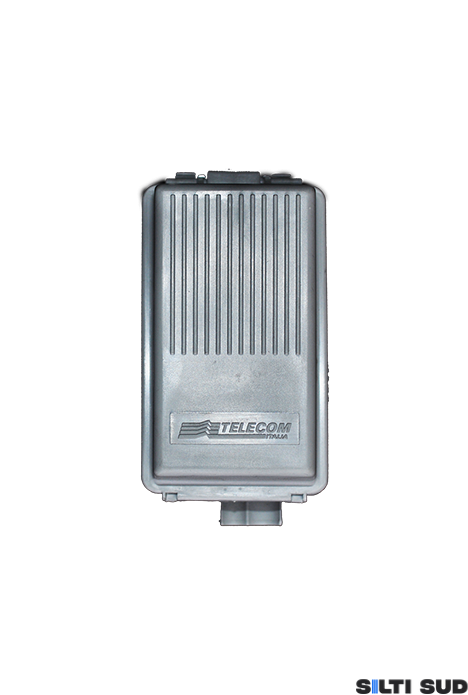

External pole/wall mount container EDB

The EDB series distributors represent an extremely reliable tool to realize external copper wire and cable systems.

They are built using a special polymer, very stable over time and adaptable to harsh environments. The EDB distributors are specifically made for wall or pole mounting, using the appropriate metal bands (optionally provided).

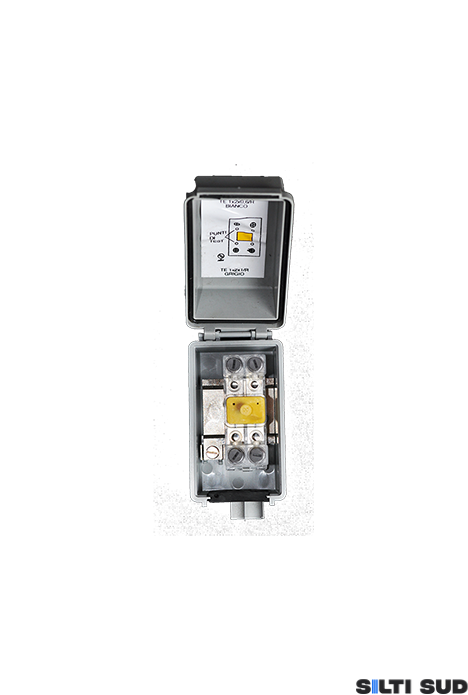

The EDB series is specifically designed to contain the connectors for drop cables from the IDW series, in order to realize distributors with 1 pair capacity.

Materials
Base and lid: PPO glass fiber reinforced.
Internal metal support: stainless steel AISI304.
Cable entrance: EPDM elastomer (thermally injection molding)
Closing gasket: elastomer.

Performance
Flammability: V0 UL94
Protection: IP IP44
Cable entrance: EDBA – 1 x 10-15 mm / 1 x 10mm.
