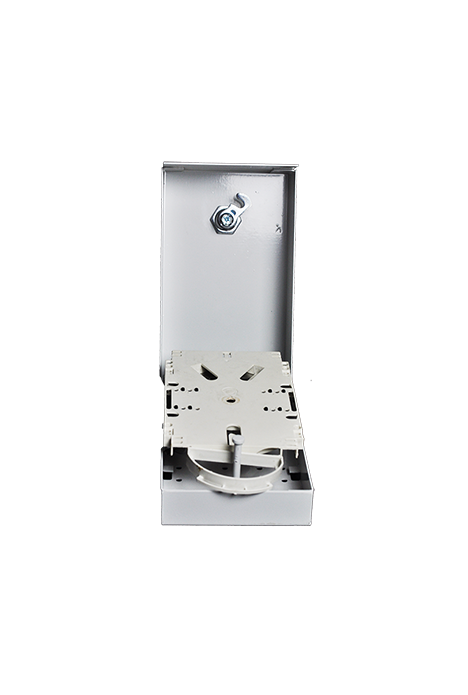

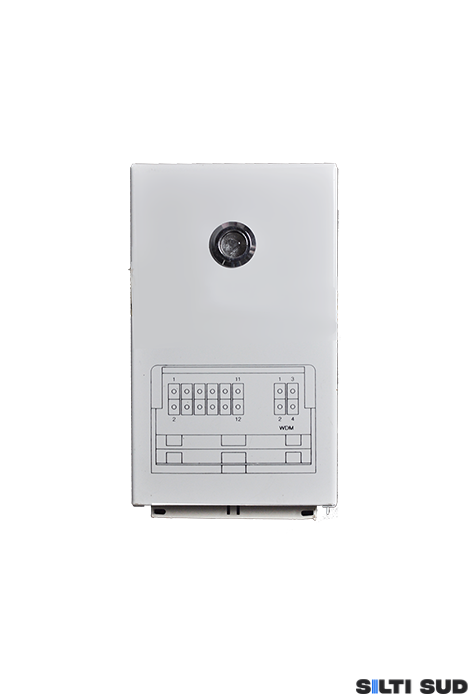

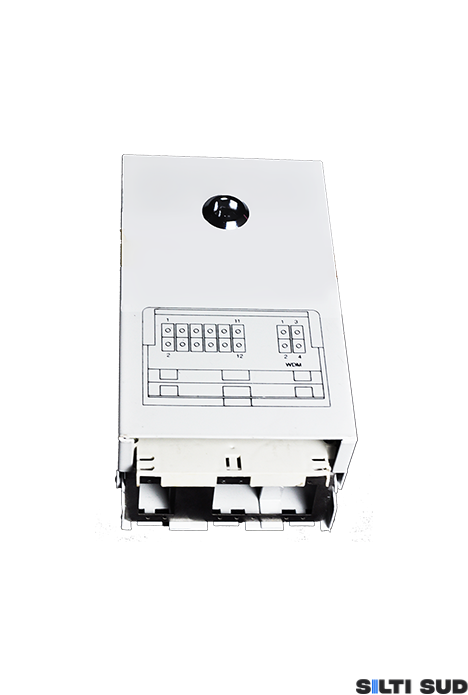

Wall-mounted optical distribution box

This distribution box can be successfully used in optical network applications as an optical termination box or as a compact optical distributor.

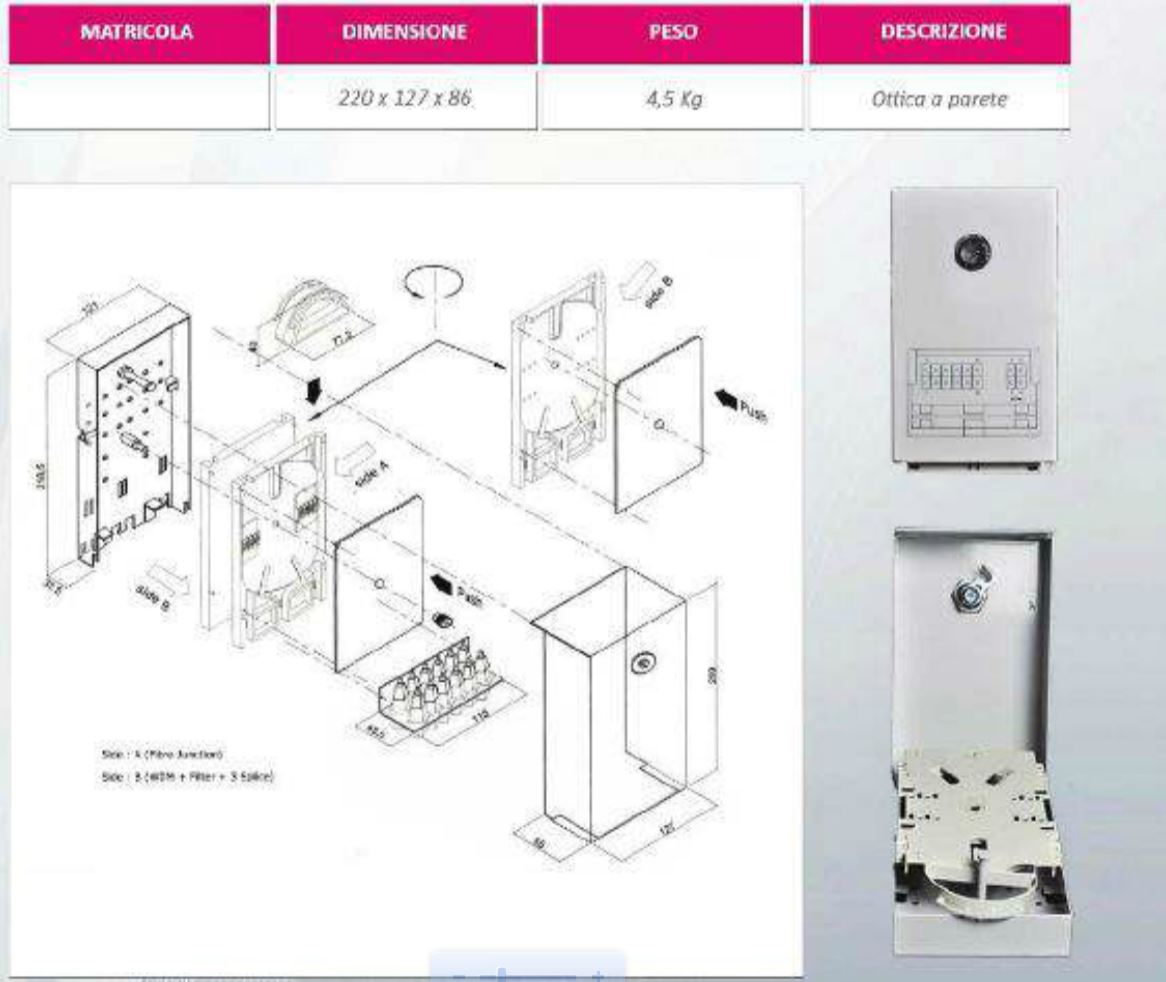

Construction:
A wall-mounted base, a cover, two separate splice modules, and a metal panel.

Use:
The optical distribution box is used as an optical network termination box or optical network distributor.

Materials:
The base and cover are made of galvanized steel coated with RAL 7038 paint.
The internal casing is made of self-extinguishing V0 thermoplastic.

Features:
The fiber area is easily accessed by simply removing the front cover.
The two splice modules can be removed for a maximum distance of 2 meters.
The fibers can be accessed without having to open the box.
A triangular key lock system protects the fiber splices.

Performance:
The base can be used to accommodate additional fibers.
There are two separate splicing modules, the first for managing up to 12 fibers and the second for storing excess fibers.
The contoured metal panel can accommodate up to 12 fibers.
The cover protects the fibers and features a keyed lock.
